Alum. Alloy
Gres
Alloy Steel
Bolts
AN 3 - AN 20
MS 90725 - MS 90726
Hex Head Bolt
120M PSI MIN. THRU
1″ DIA – GRADE 5
UNC-2A, UNF-2A
Medium Carbon Steel
MS 90727 - MS 90728
Hex Head Bolt
150M PSI MIN. – GRADE 8
PLAIN & SELF-LOCKING
UNC-2A, UNF-2A
Alloy Steel
MS 35289 - MS 35300
Hex Head Bolt
Low Carbon
Med. Carbon
GRADE 2 THAU 5. SUPERSEDED
IN PART BY MS 90725 &
MS 90726. UNF-2A & UNC-2A
MS 35301 - MS 35306
Hex Head Bolt
Alloy Steel
SUPERSEDED BY MS 90727
& MS 90728, GRADE 8
UNC-2A
MS 35307 - MS 35308
Hex Head Bolt
Gres Steel {300-Series)
70M PSI MIN.
UNG-2A – UNF-2A
MS 35309 - MS 35310
Hex Head Bolt
Naval Brass
60M PSI MIN
UNC-2A, UNF-2A
MS 35311 - MS 35312
Hex Head Bolt
Nickel – Copper Alloy (Monel)
UNF-2A & UNC-2A
MS 35354-6
Machine Bolt
Square Head
Steel, UNC-2A
MS 35751 - MS 35752
Carriage Bolt
Steel, UNC-2A
Step Bolt
Steel, UNC-2A
MS 35754 - MS 35753
Elevator Bolt
Steel, UNC-2A
Plow Bolt
Steel, UNC-2A
Nuts
AN340
Nut, Machine
Screw, Hexagon
Coarse Thread
Steel, CRES Steel, Brass
2B Fit
AN345
Nut, Machine
Screw, Hexagon
Fine Thread
Steel, CRES Steel, Brass
2B Fit
AN350
Nut, Wing
Steel, Brass
available in CRES.
2B Fit
MS24679 - 24680
Nut, Plain, Cap
Low Crown
High Crown
Steel, CRES Steel, Brass
UNC-2B and UNF-2B
MS 27040
Nuts, Plain
Square
Steel
MS 35425 - 35426
Nut, Plain
Wing
Coarse and Fine Thread
SUPERSEDES AN350 (In Part)
Steel, Brass
Available in CRES Steel
2B Fit
MS 35649 - 35650
Nut, Plain, Hex
Machine Screw
Coarse and Fine Threaded
Steel
CRES Steel
2B Fit
MS 35690 - 35691
Nut, Plain
Hexagon
Finished, Jam
Steel, CRES Steel
2B Fit
MS 51967 - 51968
Nut, Plain
Hexagon
Finished
Steel, Grade 6, Grade 8
2B Fit
Washers
AN960
Washer, Flat
Aluminum
Al Alloy
Brass
Copper
CRES.
MS 15795
Washer, Flat
CRES. Steel
Monel
Copper
Brass
Al Alloy
MS 27183
Washer, Flat
Round
Steel
SUPERSEDES MS 15795 (In Part)
NAS620
Washer Flat
Reduced O.D.
Steel
Al Alloy
Brass
CRES. Steel
MS 51412
Washer, Flat – Round
Steel
General Purpose
Lockwashers
AN935
MS 35337-35340
MS 51415-51416
Lockwasher
Split ,Spring
Light
Medium
Heavy
Extra Heavy
Steel
CRES. Steel
Phos. Bronze
Monel
AN936
MS 35333-35336
MS 35790
MS 45904
MS 51413· 51414
Lockwasher, Toothed
Internal
External
Internal-External
Countersunk External
82° and 100°
Steel
CRES. Steel
Phos. Bronze
Sockets

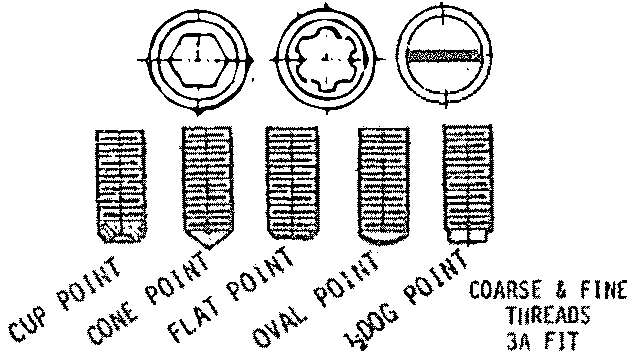

AN 565
Set Screw
Hex & Fluted
Socket
Slotted Headless
Steel
Cres. Steel
MS 51021
Setscrew-Hexagon Socket, Cup Point,
Corrosion-Resisting Steel, Passivated,
UNC-3A, Plain and Self-Locking
MS 51963 thru MS 51966
Set Screw – Hexagon Socket
Alloy Steel, Cadmium Plated
Plain and Self-Locking
Cup Point
Flat Point
UNC-3A, UNF-3A
MS 51973-74-76-77-81-82
Set Screw – Hexagon Socket
Alloy Steel, Cadmium Plated
Plain and Self-Locking
Cone Point
Oval Point
Half-Dog Point
UNC-3A, UNF-3A

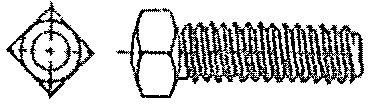

MS 51955
Square Head
Set Screw
Cup Point
Carbon Steel
Cadmium Plated, UNC-2A
MS 16995 thru MS 16996
Screw, Cap, Hex Socket Head
Corrosion Resisting Steel
UNC-3A, UNF-3A
MS 16997 thru MS 16998
Screw, Cap, Socket Head and
Screw, Cap, Socket Head,Self-Locking
Alloy Steel, Cadmium Plated
UNC-3A, UNF-3A
MS 24667
Screw, Cap, Socket-Head-Flat Countersunk
82°
Alloy Steel
UNC-3A
MS 51975
Screw, Shoulder-Socket
Head, Hexagon
Alloy Steel,
Cadmium Plated
UNC-3A
Pins

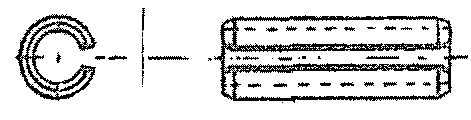

MS 9047
Pin, Spring, Steel
Phosphate Finish
MS 9048
Pin, Spring, Steel
Cadmium Plated
MS 16555
Pin, Straight, Headless (Dowel)
(.0002 Over Nominal Size)
Carbon Steel
Alloy Steel
MS 16556
Pin, Straight, Headless (Dowel)
(.001 Over Nominal Size)
Carbon Steel
Alloy Steel

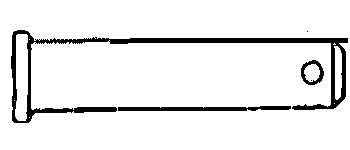

MS20392
Clevis Pin
Pin, Straight, Headed
Supersedes AN 392 – AN 406
Drilled Shank
Alloy Steel
MS 16562
Pin, Spring
Steel
Phosphate Finish
Cadmium Plated
CRES. Steel
MS 24665
Pin, Cotter (Split)
Steel
Brass
CRES. Steel
Monel
MS 24692
Pin, Tapered-Plain
Steel
CRES. Steel

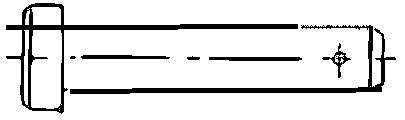

MS35810
Pin, Straight, Headed (Clevis Pin)
Steel,
Cadmium or Zinc Plated
MS 35671 - MS 35679
Pin, Grooved, Headless
Steel
CRES. Steeel
Brass
NAS 607
Pins, Straight, Headless, (Dowel)
Steel
Unplated
Cadmium Plated
Miscellaneous

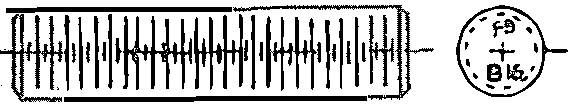

MS 16187
Stud, Continuous Thread
B16 Alloy Steel
High Temp Service
UNC-2A
MS 27127 - MS 27128
Nut, Welding
With Pilot
Without Pilot
Steel Uncoated
Acceptable Lug Designs
MS 27129
Washer, Finishing- Countersunk
Steel
Brass
CRES. Steel
MS 27151
Nut, Stamped – Standard Type
MS 27954
Turnbuckle, Body (General Purpose)
Steel
Forged
Hot Dip
Galvanized
MS 27976
Clevis, Rod End – Plain
Plain & Cadmium Plated Carbon Steel
Minimum Yield 65,000 PSI
MS 122076 - MS 122254
MS 124651 - MS 124829
Coil Thread Inserts
2-56 to 1-1/2″
AN 124951 Thru AN 125700
CTSK 100°
CRES. Steel
Mild Steel
NAS 1042 - NAS 1044
Shackles
Chain & Anchor
Forged Steel
NAS 1454
Rod Continuous Thread
CRES.
Carbon Steel
Screws
AN500-501
Machine Screw
Filister Head,
Slotted – Coarse
Fine
Drilled and Undrilled
Steel
CRES. Steel
Brass
2A Fit
AN504
Round Head
Tapping Screw,
Type “F” – Coarse and Fine
Steel
CRES. Steel
AN505/510
82° Flat Head
Machine Screw,
Coarse and Fine
Steel
CRES. Sleel
Brass
Al Alloy
2A Fit
AN506
82° Flat Head
Tapping Screw,
Type “F” – Coarse and Fine
Steel
CRES. Sleel
AN507
100′ Flat Head Machine Screw,
Coarse and fine
Steel
CRES. Steel
Brass
Al Alloy
2A Fit
AN515/520
Round Head
Machine Screw,
Coarse and Fine
CRES. Steel
Steel
Brass
Al Alloy
2A Fit
AN526
Truss Head
Machine Screw
Coarse and Fine
Steel
CRES. Steel
Al Alloy
2A Fit
AN530
Round Head
Tapping Screw,
Type “B” (2)
Steel
CRES. Steel
AN535
Round Head
Drive Screw
Type “U” Point
Steel
available in CRES.
AN545
Round Head
Wood Screw
Steel
Brass
available in CRES.
AN550
82′ Flat Head Wood Screw,
Steel
Brass
available in CRES.
MS 21268-21271
Screws, Instrument
National Miniature
Slotted
Brass
CRES. Steel
MS 21316-21317
Thumbscrew
With and Without Shoulder
Steel
2A Fit
MS 21318
Supersedes AN535
Round Head
Drive Screw,
Type “U” Point
Steel
CRES. Steel
MS 24583
32′ Flat Head
Machine Screw
Phillips Recessed
Steel2A Fit
Replaces MS 35192/31 (In Part)
MS 24584
Pan Head
Machine Screw
Phillips Recess
Steel
2A Fit
Replaces MS 35208/9 (In Part)
MS 24615-24618
Tapping Screws
Type “A”
Phillips Recessed
Steel
CRES. Steel
82° Flat Head or Pan Head
MS 24619-24622
Tapping Screws
Type “B”
Phillips Recessed
Steel
CRES. Steel
MS 24627-24630
Tapping Screws
Thread Cutting
Type “F”
Phillips Recessed
Steel
CRES. Steel
MS 24635-24638
Tapping Screws
Type “A”
Slotted
Steel
CRES. Steel
MS 24639-24642
Tapping Screws
Type “B”
Slotted
Steel
CRES. Steel
MS 24647-24650
Tapping Screws
Thread Cutting
Type “F” Slotted
Steel
CRES. Steel
MS 35189-35191
82° Flat Head
Machine Screw
Phillips Recessed
Steel
2A Fit
Coarse and Fine Threads
MS 35196-35197
82° Flat Head
Machine Screw
Phillips Recessed
Steel
2A Fit
Coarse and Fine Threads
MS 35198-35199
82° Flat Head
Machine Screw
Phillips Recessed
Brass
2A Fit
Coarse and Fine Threads
MS 35200-35201
82° Flat Head
Machine Screw
Phillips Recessed
CRES. Steel
2A Fit
Coarse and Fine Thread
MS 35204-35209
Pan Head
Machine Screw
Phillip Recessed
Steel
Per FF S 92
2A Fit
MS 35212-35215
Pan Head
Machine Screw
Phillips Recessed
Brass
2A Fit
Coarse and Fine Thread
MS 35216-35217
Pan Head
Machine Screw
Phillips Recessed
CRES. Steel
2A Fit
Coarse and Fine Thread
MS 35221-35236
Pan Head
Machine ScrewSlotted
Al Alloy
Brass
Steel
CRES. Steel
2A Fit
Coarse and Fine Thread
MS 35237-35262
82° Flat Head
Machine Screw
Slotted
Al Alloy
Brass
Steel
CRES Steel
2A Fit
Coarse and Fine Thread
MS 35263-35278
Drilled
Fillister Head
Slotted
Al Alloy
Brass
Steel
CRES Steel
2A Fit
Coarse and Fine Thread
